PEM-type H2 Generator
#
#
#
Features

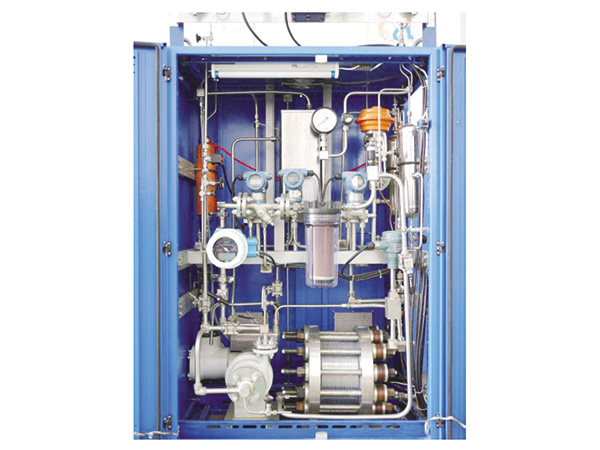

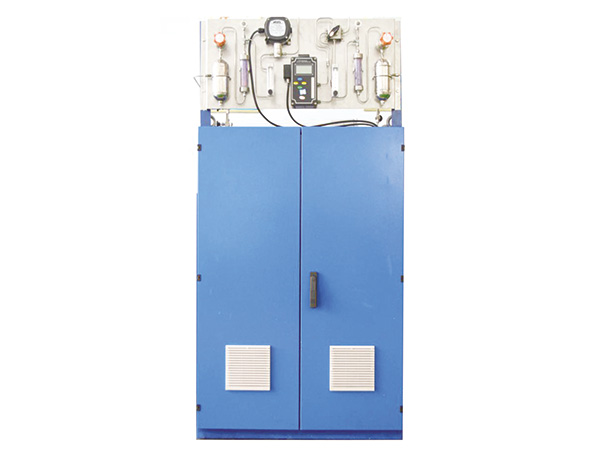

PEM-type H2 generator

PEM-type H2 generator, a kind of green hydrogen generation system, has been developed by PERIC in recent years. The hydrogen generation capacity ranges from 0.01Nm³/h to 200Nm³/h. Besides traditional industries, it can be applied to renewable energy hydrogen generation, hydrogen infrastructure system for a hydrogen refueling station, natural gas mixed with hydrogen and so on, widely used in the field of transportation, power storage, intelligent micro-grid and other special fields.

The advantage of PEM-type H2 generator is using pure water as electrolytic solution, therefore no pollution, non-corrosive, and higher hydrogen purity. Compared with the Alkaline-type H2 generator, it can be operated at high current densities, which can result in reduced operational costs and electrolytic efficiency up to 85% or better. This generator is compact with light weight, operation and regulation ranging from 0~100%, with higher reliability and lower maintenance cost.

Technical Parameters
Model H2 Output (m3/h) O2 Output (m3/h) Hydrogen purity (V/V) Oxygen purity (V/V) Working Load Working pressure (MPa) Water content in H2 (g/m3) Operation temperature (℃) DC Power consumption (kW·h/m3H2)
SDQ-1 1 0.5 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-2 2 1 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-5 5 2.5 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-10 10 5 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-15 15 7.5 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-20 20 10 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-25 25 12.5 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-30 30 15 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-40 40 20 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-50 50 25 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-60 60 30 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-70 70 35 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-80 80 40 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-90 90 45 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
SDQ-100 100 50 ≥99.9% ≥99.2% 10%-100% 0.1~3.2 ≤4 54±2 ≤5.4
Case
Case Up to now, 718 has sold more than 1,000 sets of water electrolysis hydrogen production equipment, including electric power, petrochemical, pharmaceutical, metallurgy, polysilicon, meteorology, aerospace and other major gas companies. The sales scope covers 31 provinces, municipalities and autonomous regions nationwide, and is exported to more than 20 countries such as the United States, Germany and Norway. Please click on the specific case.
Service support
We are not only committed to providing first-class products and equipment, but also complete customer service.
After rapid development in recent years, we have established a comprehensive after-sales service team consisting of nearly 40 senior engineers, covering civil engineering, installation, commissioning, training and other services.
Our after-sales service team guarantees that each set of equipment can be quickly delivered to the customer with the best performance during on-site installation and commissioning. At the same time, after the equipment is officially put into production, we also provide professional online technical Q&A and fast on-site service in case of equipment failure.
PERIC has always been adhering to the principle of customer first, and has established long-term cooperation and service relationship with domestic and foreign customers. We also hold training courses and lectures for domestic and foreign customers together with China Industrial Gases Industry Association Hydrogen Professional Committee. The class has adopted various training methods including technical analysis, case explanation, exchange seminars etc. So far, 40 sessions have been held, and unanimously recognized and praised by users at home and abroad.
